Profile

The APRE-2000 transmitter is applicable to the measurement of differential pressure of gases, vapors and liquids. The active element is a piezoresistant silicon sensor separated from the medium by separating diaphragms and a specially selected type of manometric fluid. The special design of the active sensing element ensures that it is able to withstand pressure surges and overloads of up to 250, 320 or 420bar. Electronics in the casing with a degree of protection IP65, IP66

• 4…20 mA output signal + HART protocol
• Intrinsic safety certificate (ATEX, IECEx)
• Static pressure limit up to 420 bar
• Accuracy 0,1%
• Gold plated diaphragms (Au)
• Wetted parts material Hastelloy C276 Marine certificate DNV, BV

• Accuracy 0.4%
• Measuring ranges :
• 0 ÷ 1, 0 ÷ 2.5, 0 ÷ 4 bar
• 0 ÷ 6, 0 ÷ 10 bar ü 0 ÷ 16,
• 0 ÷ 25 bar Output signal
• 4 ÷ 20 mA or 0 ÷ 10 V
• Process connection :
• M20x1,5, 1/4”NPTF

The APR-2000GALW transmitter is applicable to the measurement of differential pressure of gases. Typical applications include the measurement of blast pressure, chimney draughts or pressure / underpressure in furnace chambers. The ability to select the radical conversion characteristics enables the transmitter to be used in gas-flow measurement systems using reducing pipes or other impeding elements. The transmitter can withstand overpressure up to 1 bar. The housing of the electronic circuit has the degree of protection IP66/IP67.

The APRE-2000G transmitter is applicable to gases, to the measurements of their pressure, underpressure and differential pressure. Typical applications include the measurement of blast pressure, chimney draughts or pressure / underpressure in furnace chambers. The ability to select the radical conversion characteristics enables the transmitter to be used in gas-flow measurement systems using reducing pipes or other impeding elements. The transmitter can withstand overpressure up to 1 bar. The housing of the electronic circuit has the degree of protection IP65 ,IP66 , IP67.

The PRE-50G transmitter is applicable to gases, to the measurements of their pressure, underpressure and differential pressure. Typical applications include the measurement of blast pressure, chimney draughts or pressure / underpressure in furnace chambers. IP protection IP54

The PM-22 pressure transmitter is applicable to convert standard pressure signal for standard current 4-20mA signal. of the pressure, underpressure and absolute pressure of gases, vapours and liquids.

ELECTRO-PNEUMATIC INTERSYSTEM TRANSMITTER type A201 IS USED FOR CONVERSION THE STANDARD ANALOGUE ELECTRIC SIGNAL ON STANDARD PNEUMATIC SIGANL AT RANGE 20...kPa OR 60..300kPa IN AUTOMATIC REGULATION SYSTEMS OR CONTROL INDUSTRYSYSTEMS. THIS TRANSMITTER POSSESES COOPERATION THE ELECTRONIC AUTOMATION SYSTEMS WITH EXECUTIVE ELEMENTS. THE TRANSMITTER’S WORKING IS BASED ON COMPARISON MOMENT RULE OF FORCE MADE BY COIL WHICH WAS PUT IN CONSTANT MAGNETIC FIELD PROPORTIONAL FOR INPUT SIGNAL, WITH MOMENT OF FORCE MADE BY METALIC PRESSURE CAPSULE OF FEEDBACK, WHERE THE PNEUMATIC OUTPUT SIGNALIS SUPPLIED. CHANGE OF DIRECT OF TRANSMITTER WORKING (”DIRECTLY” OR “INVERSELY” WORKING) MIGHT BE REALIZED BY CHANGE CURRENT FLOW DIRECTION BY COIL AND CORRECTION OF TRANSMITTER REGULATION.

The KAP-03 (KAP-03Ex) HART field communicator is a portable device used for communication and exchange of data with smart transmitters e. g. pressure, differential pressure, temperature transmitters. It features an output built as a standard current loop 4-20 mA, using FSK modulation type BEL 202 with an implemented HART communication protocol revision 5 and revision 6. The communicator is specially designed to configure smart transmitters manufactured by APLISENS.

The SGE-25 hydrostatic level probe is applicable to measure liquid levels in tanks, deep wells or piezometers. The SGE-16 probe is a specialized device designed to measure water levels in narrow diameter piezometers or wells.

The SGE-25S and SGE-25C probes are applicable to measure levels of liquids containing contaminants or suspensions. A typical use for this probe is the measurement of levels of liquid waste in intermediate pumping stations, fermentation chambers, settling tanks etc.

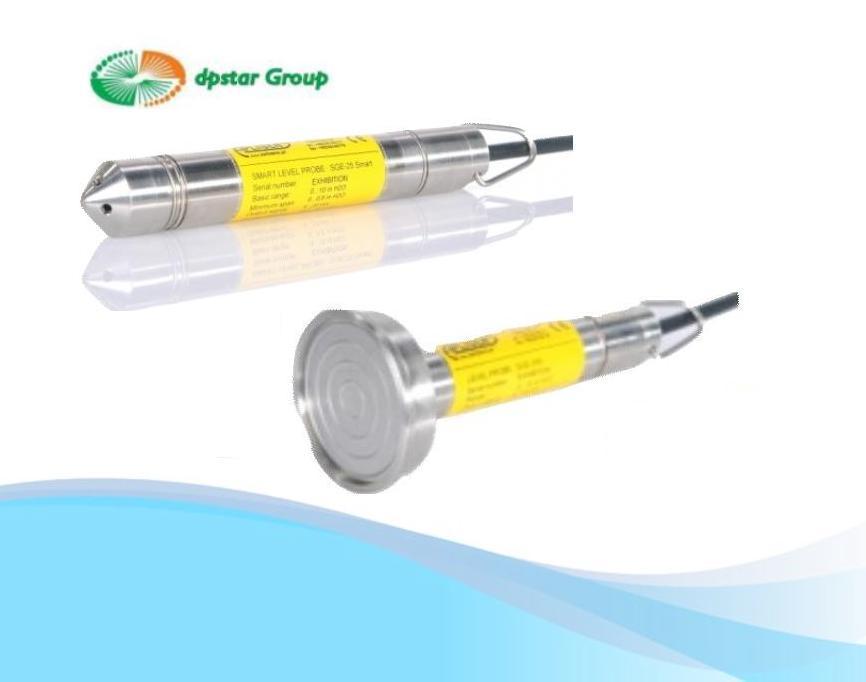

Application The SGE-25.Smart level probe is applicable to measure liquid levels in tanks, deep wells or piezometers. The SGE-25S.Smart probe is applicable to measure levels of liquids containing contaminants or suspensions. A typical use for this probe is the measurement of levels of liquid waste in intermediate pumping stations, fermentation chambers, settling tanks etc.
